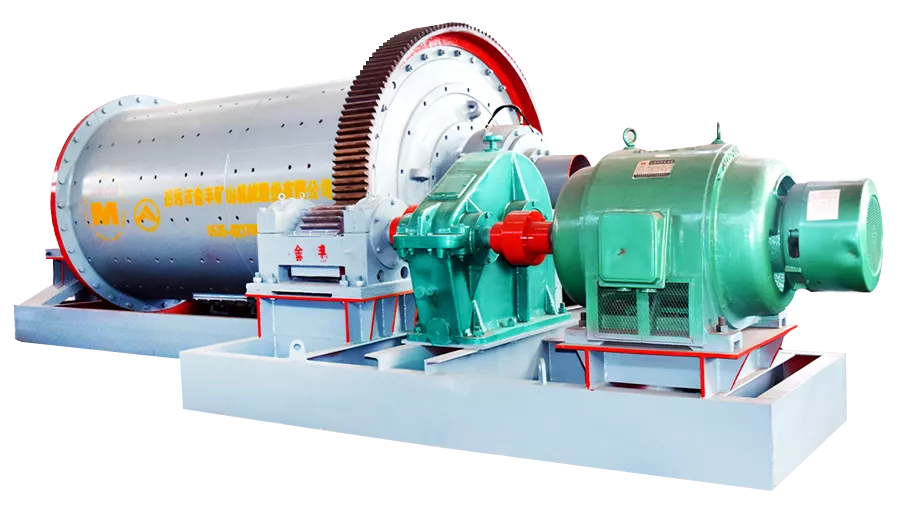

GM series rolling bearing ball mill
motor power ：11-6000kw output: 0.3-580t/h
■ the main bearing adopts large-diameter double row self-aligning roller bearing instead of the original sliding bearing, which reduces friction, reduces energy consumption and makes the mill easy to start. ■ keep the end cover structure of ordinary mill, large-diameter inlet and outlet, and large processing capacity.
■ when selecting, the user shall indicate the rotation direction and discharge mode of the ball mill. ■ bearing model can be changed according to user requirements.
JF spiral classifier
Spiral diameter: 500-3000mm Motor power: 1.1-30x2kw
■ A sand scraper is added to match the drum feeder of the ball mill to make the mortar flow from the side to the drum feeder of the mill.
■ Some classifiers use rolling bearings instead of the original bearings to reduce the friction resistance and avoid frequent replacement and maintenance of bearings. ZQ type reducer is used to reduce the installation and maintenance space.
■ The lubricating parts are reformed, and the large-sized products are equipped with dry oil pumps, so the lubrication is reliable.
SF type flotation machine
Tank volume: 0.13-5.8m3 Drive motor power: 1.5-22.0kw
■ the product is selfpriming air and pulp. The tank body is forward inclined, which is not easy to sink and is conducive to the forward return of foam; The double blade impeller is used to stir the bottom phase sand well.
■ features of this type of flotation machine: large suction capacity and low energy consumption; Horizontal arrangement, without foam pump; The impeller has low circumferential speed, long service life of the impeller cover plate, and the slurry circulates up and down in a fixed manner, which is conducive to the suspension of coarse minerals.
JFC spring cone crusher
Motor power: 37-300kw Cavity type: c-ef
■ siple structure, stable operation, stable performance and leading output; All easily worn parts are protected by manganese steel parts to prolong the service life of the whole machine; The mounting surface of the movable fixed gear plate is finished without packing, and the replacement is simple and rapid.
■ propose the corresponding crusher model according to the beneficiation scale and operation system, which is used for crushing raw materials in metallurgy, construction, road construction, chemical and silicate industries
